Bilateral Horizontal Ridge Augmentation with Block Bone Grafts Using a Piezoelectric Device for Fixed Implant Restoration

Yong-Dae Kwon

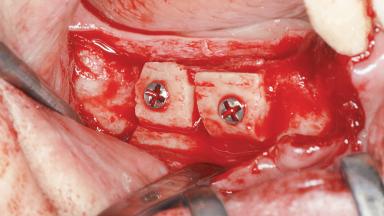

A woman in her mid-fifties was referred by a dental student for dental implant placement. Both posterior segments of the mandible had been edentulous for more than 4 years, the only residual tooth being the right lower first premolar. The patient had used a removable partial denture but was not entirely satisfied with its function. The clinical examination revealed a sharp edentulous ridge in both posterior segments of the mandible, and the patient was told that it would not be possible to insert implants into this thin edentulous ridge without significant augmentation of the alveolar ridge. Her medical history revealed no significant findings and no underlying disease that might have complicated surgical procedures. During the presurgical examination, the patient reported that she was a little apprehensive about bone grafting. After being informed about the surgical procedures and potential postoperative complications, she accepted the proposed surgical plan of bone grafting and subsequent placement of implants.

General information

Case Type Extended Space
Jaw Mandible
Area Posterior
# of Teeth 7
# of Implants 5
Type of Implants One-Piece
Attachment One-Piece
Bone Augmentation Horizontal|Staged
Augmentation Materials Autogenous block(s)|Xenogenous|Membrane
Guided Surgery No
Soft Tissue Grafting None
Abutment Type Standard
Prosthesis Type FDP

Esthetic Risk Assessment

Esthetic Risk Factors Low Medium High
Medical Status Healthy Compromised
Smoking Habit Non-smoker Light smoker (< 10 cigarettes per day) Heavy smoker (≥ 10 cigarettes per day)
Patient's Esthetic Expectations Low Medium High
Lip Line No exposure of papillae Exposure of papillae Full exposure of mucosa margin
Periodontal Phenotype Low-scalloped, thick Medium-scalloped, medium-thick High-scalloped, thin
Shape of Tooth Crowns Rectangular Triangular
Infection at Implant Site None Chronic Acute
Bone Level at Adjacent Teeth ≤ 5 mm to contact point 5.5 to 6.5 mm to contact point > 7 mm to contact point
Prosthodontic Status of Neighboring Teeth Virgin Restored
Width of Edentulous Span 1 tooth (≥ 7 mm) 1 tooth (< 7 mm) 2 teeth or more
Soft Tissue Anatomy Intact Defective
Bone Volume Horizontally and vertically sufficient Horizontally deficient Deficient vertically or deficient vertically AND horizontally
